EWC480150 WC Series Welding Cable Reel - 12VDC Electric Rewind
- Part Number EWC480150
- ID (mm) -
- Length (m) -
- Rewind Type Motor
- Series C Series / WC Series
DESCRIPTION
The C Series welding reels have all the features of our rugged Australian made C Series range. Ideally suited for a variety of applications, this simple but tough hose reel will handle a multitude of hose sizes, lengths and pressures.The main axle is supported by ball bearings while the adjustable friction brake allows you to add or remove drag to prevent over spooling. The positive lock spool-lock holds the spool fixed during transit, preventing overrun and the open spool design allows air flow to help dry out wet areas and allow for easy cleaning. A bolt together frame and spool constructed 3mm steel plate offers easy access for maintenance and service as and when required. The unique modular design of the C series also allows the user to add or change drive systems in the field or at a later date using a simple bolt on process.
SPECIFICATIONS
- Fits metres of 35mm2 90
- Fits metres of 50mm2 60
- Fits metres of 70mm2 55
- Inlet Fitting -
- Outlet Fitting -
- Weight (kg) -
- Max Temp (degrees Celcius) -
- Finish Steel, 304 Stainless Steel, 316 Stainless Steel
- Includes Cable? No

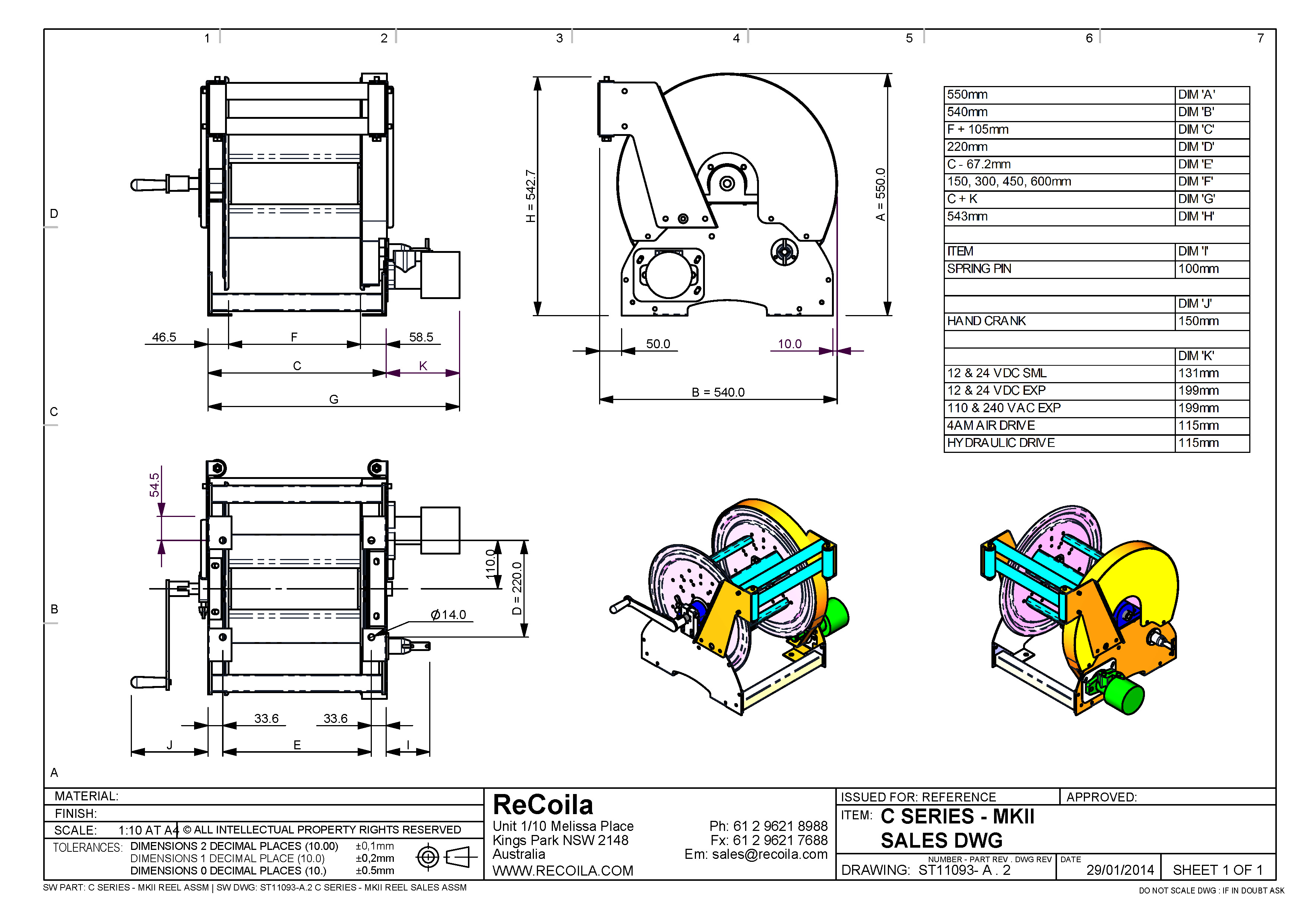

DIMENSIONS (mm)
- Refer to dimensional drawing Click on image above
