V848-04-01-00 Exhaust Extraction Reel - 9m

• Part Number V848-04-01-00

• ID (mm) 203 (8 inch)

• Length (m) 9

• Rewind Type spring

• Series V

DESCRIPTION

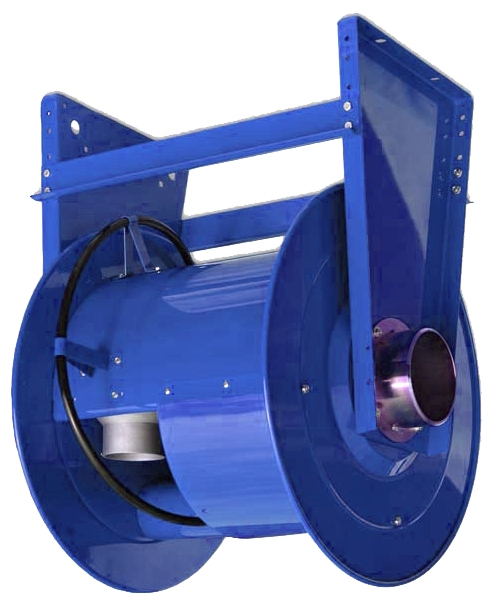

V Series exhaust reels conveniently store lengths of large diameter exhaust hose. Designed to divert hazardous carbon monoxide gasses away from the workplace, these tough industrial reels are spring retractable and feature a latching mechanism that maintains the desired working length of hose. Features 2 high quality industrial strength carbon drive springs to ensure the hose retracts every time. Components are individually powder coated providing excellent corrosion resistance. The reel may be mounted from the ceiling, wall or floor.

Note that hose capacities are suggested by the manufacturer and do not reflect additional hanging hose. In most instances hose will hang off the reel but it is not recommended to exceed 4.5 metres or 15ft.

SPECIFICATIONS

• Inlet Fitting 8

• Outlet Fitting 8

• Weight (kg) 87

• Max Temp (degrees Celcius) -

• Finish Powdercoat

• Swivel Material -

• Seal Material -

• Includes Hose? No

• A 1403

• B 1219

• D 381

• F 1511

• G 857

• H 1372
