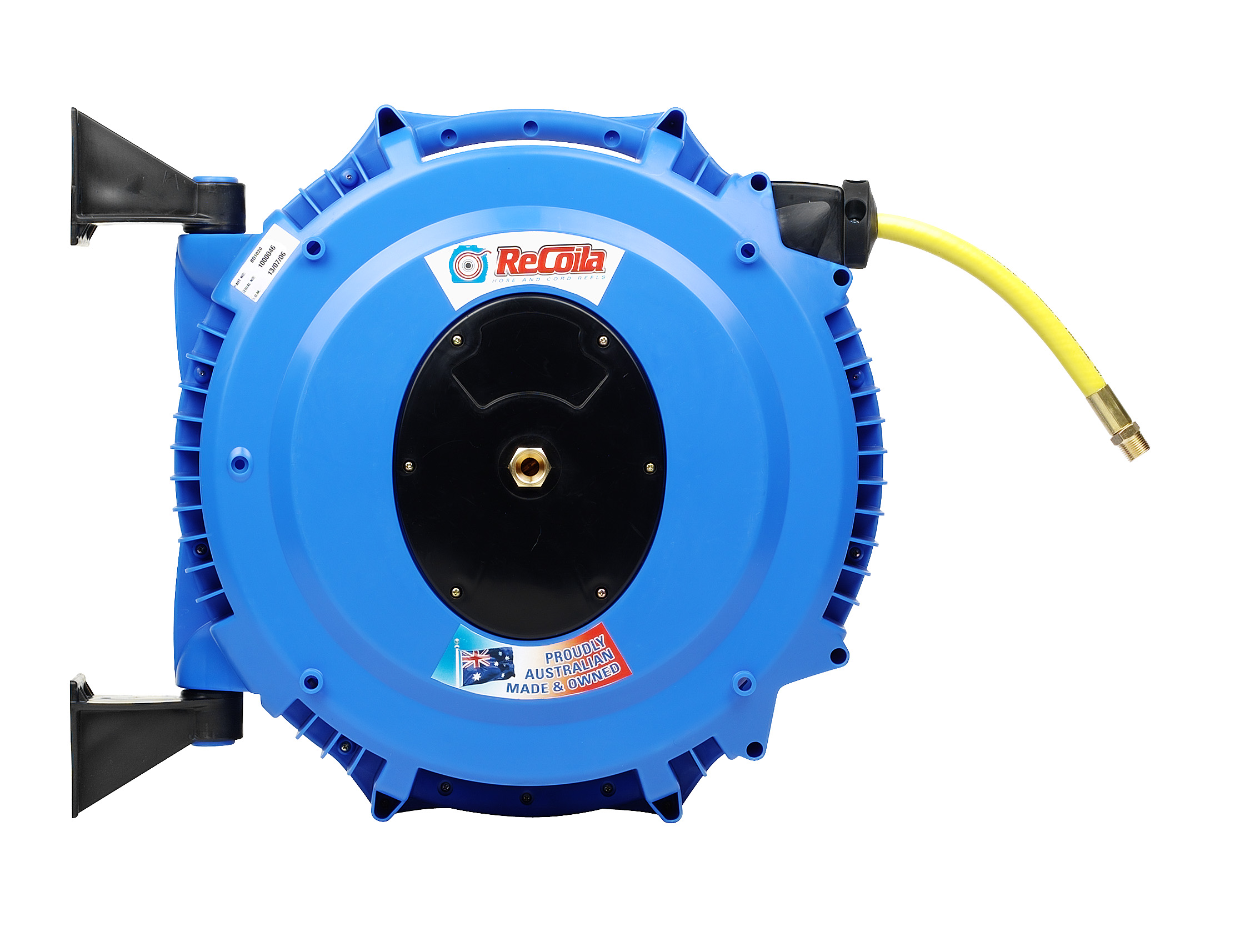

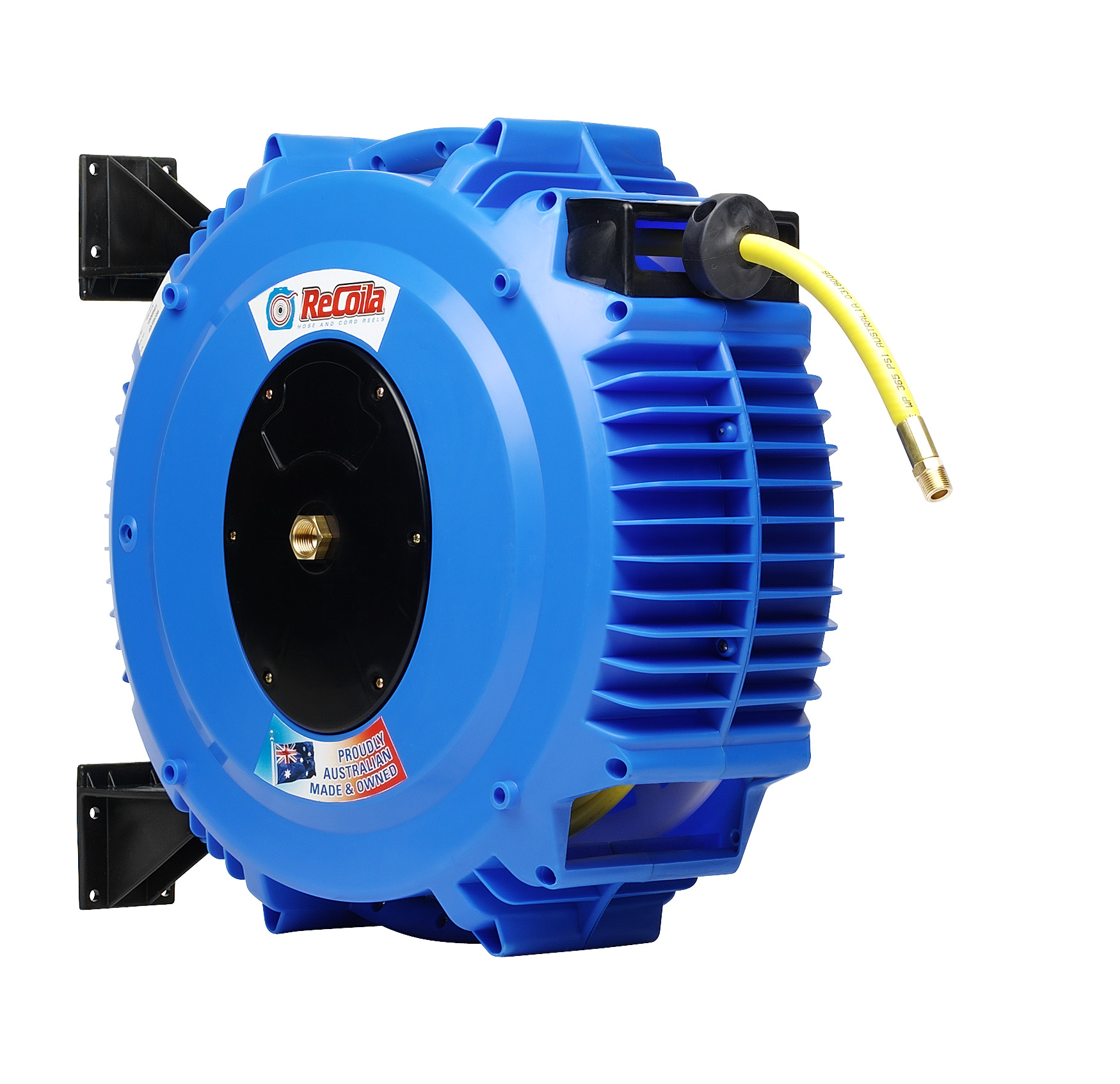

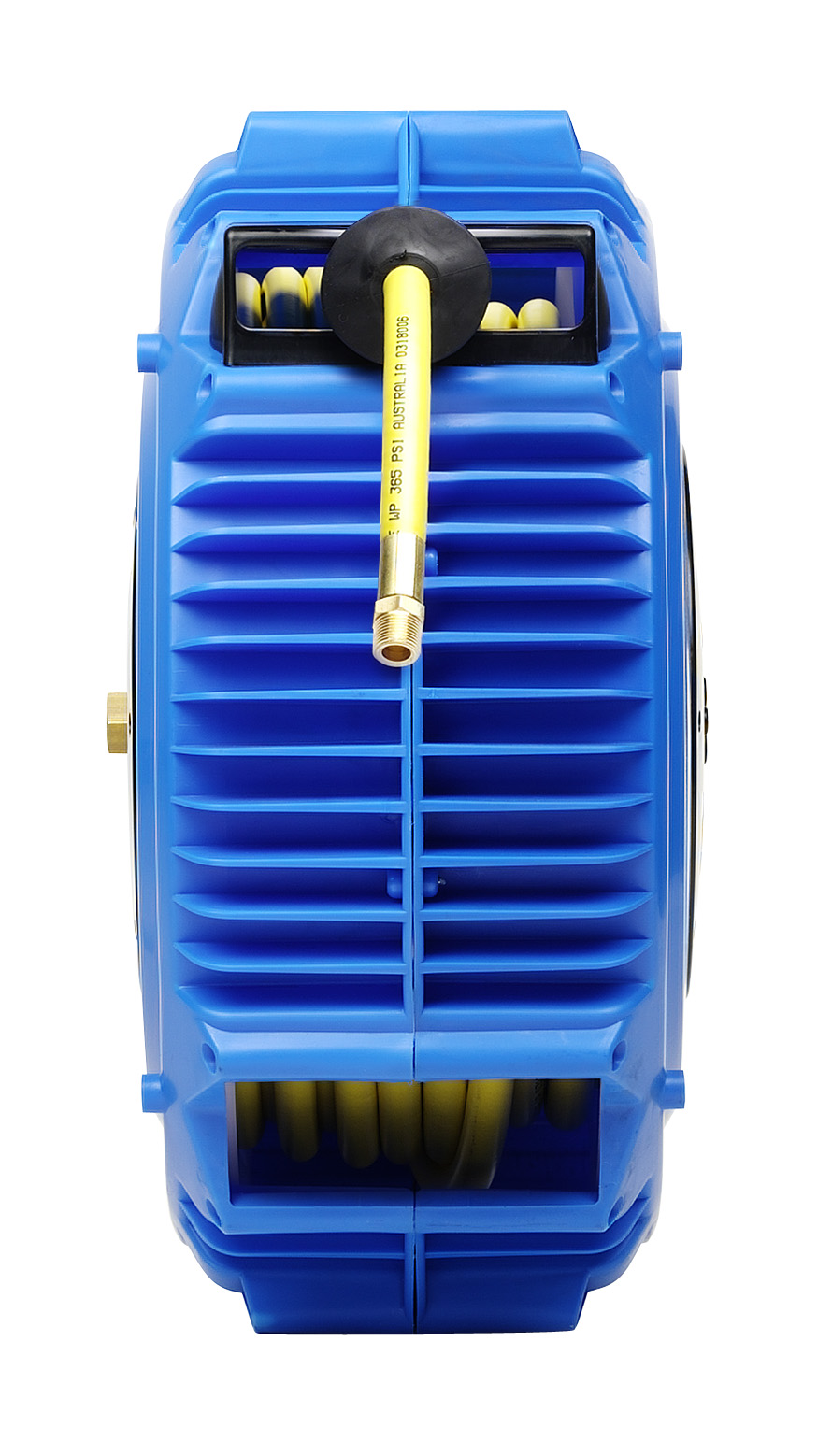

BD1020 Breathing Air Reel

• Part Number BD1020

• ID (mm) 10

• Length (m) 20

• Pressure (PSI) 240

• Rewind Type spring

DESCRIPTION

ReCoila Gen III BD Series hose reels are ideally suited for supplying high quality breathing grade air to air-fed respirators to better manage the supply hose, making it safer for the operator particularly in confined work areas. This reel is also used for shallow diving applications.

Download 3D model (.STP file compatible with most CAD software)

SPECIFICATIONS

• Series Gen III

• Inlet Fitting 3/8

• Outlet Fitting 3/8

• Weight (kg) 12

• Max Temp (degrees Celcius) 60

• Finish composite

• Swivel Material Brass

• Seal Material NBR

• Includes Hose? Yes

DIMENSIONS (mm)

• A 490

• B 239

• C 599
